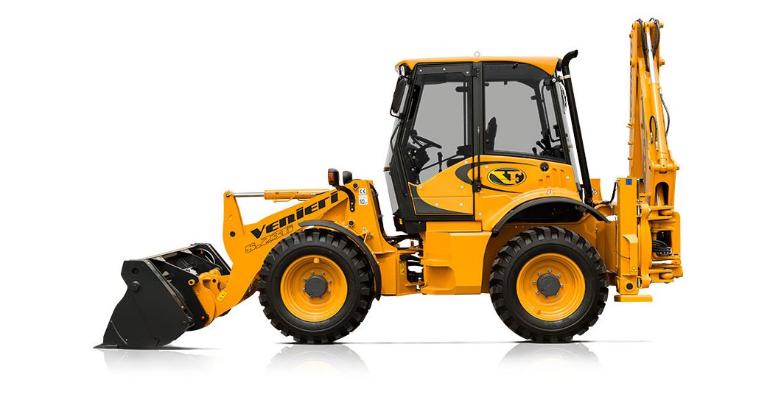

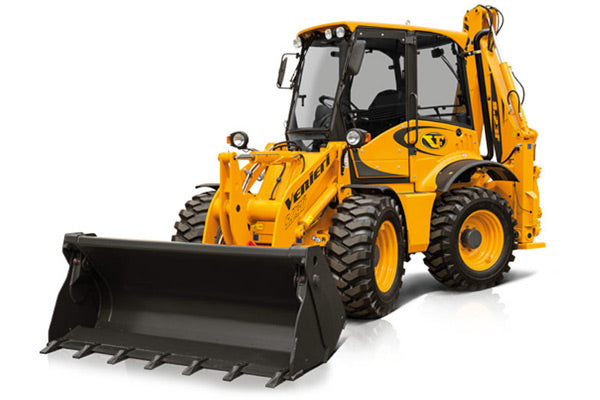

Venieri 8.23G Wheel Loader

Newly redesigned and ready for work, meet the Venieri 8.23 G Wheel Loader! The brand-new ventilation system keeps you operating at maximum comfort with Climate Control and A/C Controls being easily accessable, while the 360 degree view allows you to have complete control of the work space. The Loader's arm's come standard with an energy recovery function, eliminating all "downtimes" when lowering the boom, improving response time and performance. The rear excavator provides the ability to get more done in a shorter period of time without having to have extra machines on site. This multifunctional machine cuts out the need for expansive fleets, opting for a singular, focused "one machine for every job" mentaility. All of this backed up by the new Deutz 4i Engine which delivers high torque at low rpm.

Features

Venieri 8.23 G Wheel Loader features include:

  • "Z" Linkage - Completely redesigned linkage to the latest state of the art for maximum breakout force.

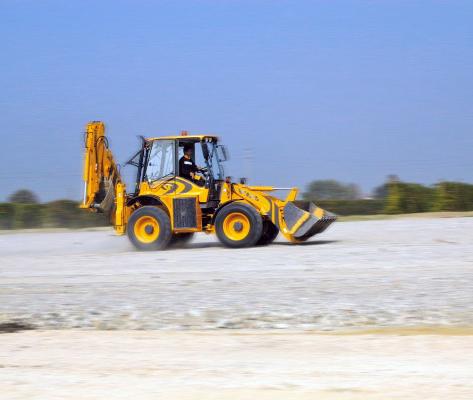

  • New Deutz 4i Engine - The new Deutz engine complies with the latest emission standards delivering high torque at low rpm.
  • Total Stability -The oscillating rear axle supports and is controlled by a double-acting cylinder, fuctions as a damper and suspension block to ensure total stability

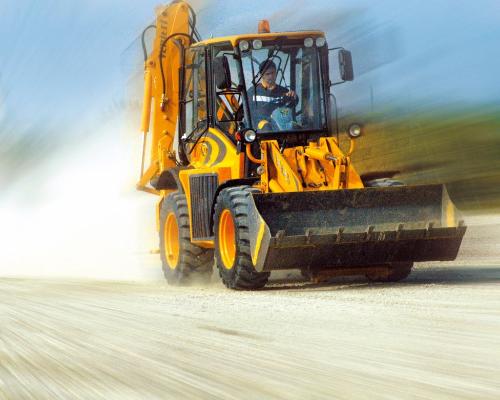

  • Automotive Disc Break System - The Split double breaking system, operating on each single axle, guarantees the machine a minimum breaking distance.
  • Adaptability - Full attachment interchangability with Venieri's Previous Models
  • Central Articulation - The 8.23 G can easily operate in tight spaces thanks to central articulation

Specifications

Venieri 8.23 G Wheel Loader specifications include:

  • Max Power - 106 HP
  • Max Torque - 302.4ft lbf
  • Battery - 12 V
  • Alternator - 95 A
  • Service Brake - Hydraulic Multi-Disk oil breaks on each wheel with two separate circuits
  • Parking Brake - Band-Type on the split outlet hand-operated
  • Standard Hydraulic Flow - 23.25 gpm
  • Max Hydraulic Flow  - 33.02 gpm
  • Standard Bucket Capacity - 1.44 yd3
  • Loader Lifting capacity (Max Height) - 9,039 lbs
  • Backhoe Lifting Capacity (Max Height) - 3,086 lbs
  • Static tipping load, full turn - 12,787 lbs
  • Breakout Force - 15,212 lbs
  • Total Steering Angle - 80°
  • Noise Level (inside cabin) - 12dB approx.

Contact

Pick up the Venieri 8.23G Wheel Loader today at Kooy Brothers Equipment Ltd. located at 1919 Wilson Avenue in Toronto, Ontario.

Contact us for more information.

*Price is subject to changes without notice. Errors and omissions exempted.
