The Venieri 5.63C Wheel Loader is equipped with a powerful 79 HP Deutz, delivering high torque at low RPMs. The oscillating rear axle makes for a smooth and stable ride over bumps so you can get to your destination comfortably. This Venieri's cab gives you a 360 degree view for complete working control. Whether you're moving dirt, rock or snow, the 5.63 Venieri can do it all!

Features

Venieri 5.63C Wheel Loader Features Include:

• 4K Linkage - New completely redesigned linkage to the latest state of the art for maximum breakout force.
• BREATHTAKING VIEW - The new ROPS/FOPS Level II cabin design guarantee a 360° visibility, for maximum work place control and highest level of safety.

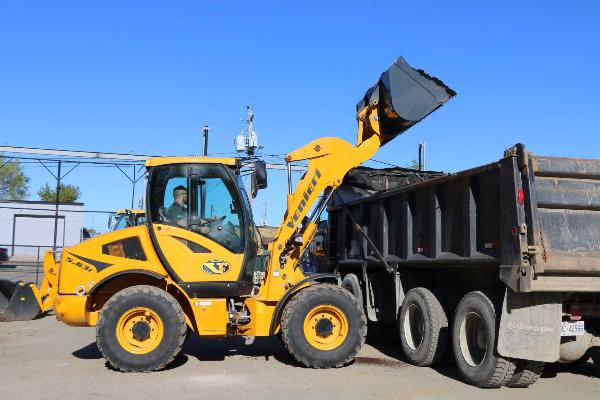

• SAFETY IS PRIORITY - The negative parking brake is integrated into the front axle for maximum safety in all operating situations.
• CLIMATE CONTROL - The ventilation system guarantees operator comfort. You can choose between automatic climate control or the air conditioner, thus obtaining the perfect temperature in the cabin.
• QUIET CABIN - By using new sound absorbing materials and special “anti vibration” rubber shocks, the noise inside cabin is radically reduced guaranteeing maximum comfort to the operator.

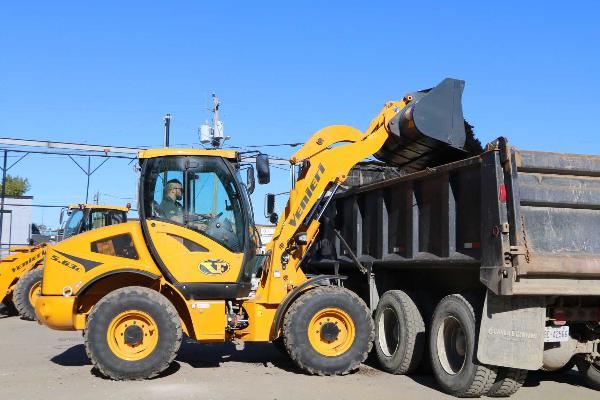

• TOTAL STABILITY - Oscillating rear axle is fixed to the frame with maintenance-free supports.
• AIR FILTRATION - Air cleaner system, offers a two stage filtration with a highly  efficient pre-cleaner plus primary filters and safety filters. Venieri is continuously improving engine protection.
• COOLING FAN - The electrically controlled dual speed cooling fan adjusts the rotation speed according to working conditions, reducing fuel consumption and noise.
• BUILT FOR POWER, DESIGNED FOR AGILITY - The special design of the counter-weight guarantees perfect maneuverability, maximum drive angle and protects the rear light system.

Specifications

Venieri 5.63 Wheel Loader Specifications Include:

• Max Power - 79 HP
• Max Torque - 260 ft-lbf
• Economic Working Range - 1,400 - 1,800 rpm
• Battery - 12 Volt
• Alternator - 95A
• Max Hydraulic Flow - 23.78 gpm
• Max Hydraulic Flow (with high flow) - 30.38 gpm
• Loader Relief Valve Pressure - 3,336 psi
• Steering Relief Valve Pressure - 2,756 psi
• Lifting time (full) - 4.38 sec
• Lowering time (empty) -  3.41 sec
• Tipping Capacity - 10,913 lbs
• Hinge Pin Height - 11 ft 1 in
• Breakout Force - 14,110 lbs
• Total Steering Angle - 80°
• Noise Level (inside cabin) - 75 dB(A)
• Noise Level (outside cabin) - 99 dB(A)
• Max Height - 9 ft
• Track Width - 5 ft

Contact

Find the Venieri 5.63 Wheel Loader at Kooy Brothers Equipment Ltd. located at 1919 Wilson Avenue in Toronto Ontario.

Contact us for more information.

*Price is subject to change without notice. Errors and omissions exempted.
