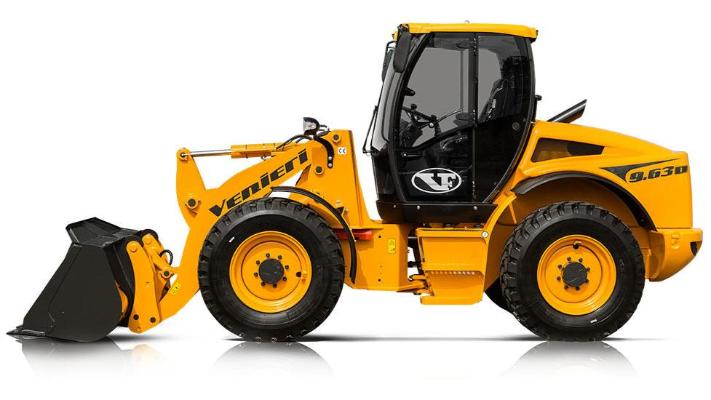

Venieri 9.63D Wheel Loader Side Profile

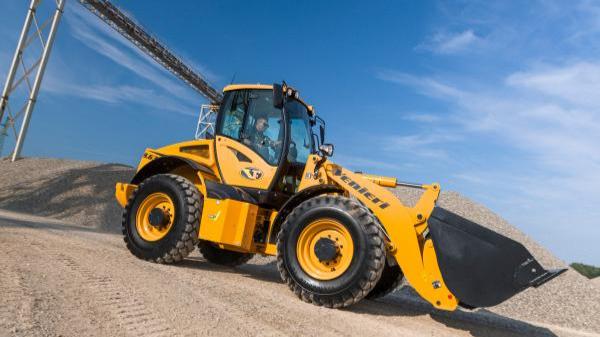

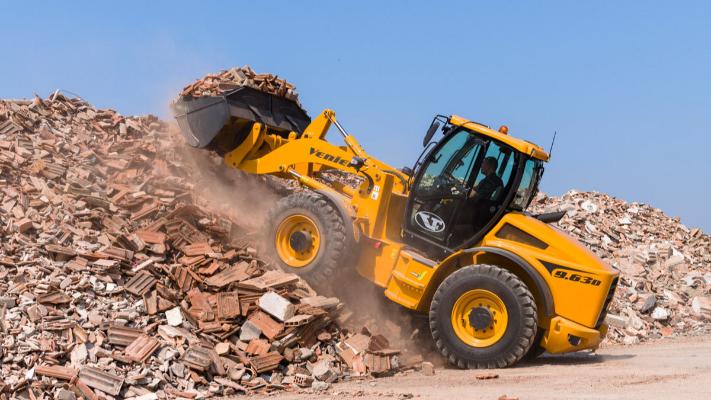

Venieri 9.63D Wheel Loader
Venieri 9.63D Wheel Loader

Venieri 9.63D Wheel Loader

Where beauty meets functionality. The Venieri 9.63D Articulating Wheel Loader is one the newest in the Venieri lineup! Featuring a new and imporved 143 horsepower DEUTZ stage V diesel engine that boasts a significant increase to both power and torque! Venieri's new Global satellite monitoring system gives you the most detailed information about your machines and attachments all right on your smartphone!

Whether you need to move dirt, rock or snow, this Venieri 9.63D Wheel Loader is perfect for all seasons and applications!

Key Features:

  • Deutz Stage V/Tier 4f Engine - The new Deutz engine of the 9.63D Wheel Loader is compliant with the latest anti-pollution regulations with high torque already at low rpm. The Stage 5 engine comes with a substantial 21% increase in power and 17% increase in torque, compared to previous models.
  • Venieri Global - The brand new satellite monitoring system from Venieri guarantees an increase in productivity by providing you with detailed information about your fleet and attachments.
  • Venieri Dash Control - The electronic dashboard allows the operator to manage and view some of the most important functions of the machine with ease.

All Features:

  • 4K LINKAGE - New completely redesigned linkage to the latest state of the art for maximum breakout force.
  • BREATHTAKING VIEW - The new ROPS/FOPS Level II cabin design guarantee a 360 ° visibility, for maximum work place control and highest level of safety.
  • SAFETY IS OUR PRIORITY - The negative parking brake is integrated into the front axle for maximum safety in all operating situations.
  • CLIMATE CONTROL - The brand new ventilation system guarantees operator comfort. You can choose between automatic climate control or the air conditioner, thus obtaining the perfect temperature in the cabin.
  • QUIET CABIN - By using new sound absorbing materials and special “anti vibration” rubber shocks, the noise inside cabin is radically reduced guaranteeing maximum comfort to the operator.
  • TOTAL STABILITY - Oscillating rear axle fixed to the frame with maintenance-free supports
  • AIR FILTRATION - New air cleaner system with two stage filtration, highly efficient pre-cleaner plus primary filters and safety filters. Venieri is always improving engine protection!
  • COOLING FAN - The new electrically controlled dual speed cooling fan adjusts the rotation speed according to working conditions, reducing fuel consumption and noise.
  • BUILT FOR POWER, DESIGNED FOR AGILITY - The special design of the counter-weight guarantees perfect maneuverability, maximum drive angle and protects the rear light system

Venieri 9.63D Wheel Loader Specifications:

  • Max Power - 143 HP
  • Max Torque - 368.8 ft-lbs
  • Battery - 12 Volt
  • Alternator - 95A
  • Maximum Travel Speed - 40 km/hr
  • Service Brake - hydraulic multi-discoil bath on front and rear axles
  • Parking Brake - Negative hydraulic, electrically operated, on the front axle
  • Max Hydraulic Flow - 27.74 gpm
  • Max Hydraulic Flow (with high flow) - 34.34 gpm
  • Lifting time (full) - 4.6 sec
  • Lowering time (empty) -  3.5 sec
  • Unloading Time - 1.8 sec
  • Total Cycle Time - 9.9 sec
  • Tipping Capacity - 13668 lbs
  • Hinge Pin Height - 11 feet 10 inches
  • Breakout Force - 18,959 lbs
  • Total Steering Angle - 80°
  • Noise Level (inside cabin) - 69 dB(A)
  • Noise Level (outside cabin) - 101dB(A)

Find the Venieri 9.63D Wheel Loader at Kooy Brothers Equipment Ltd. located at 1919 Wilson Avenue in Toronto Ontario.

Contact us for more information.

*Price is subject to change without notice. Errors and omissions exempted.
