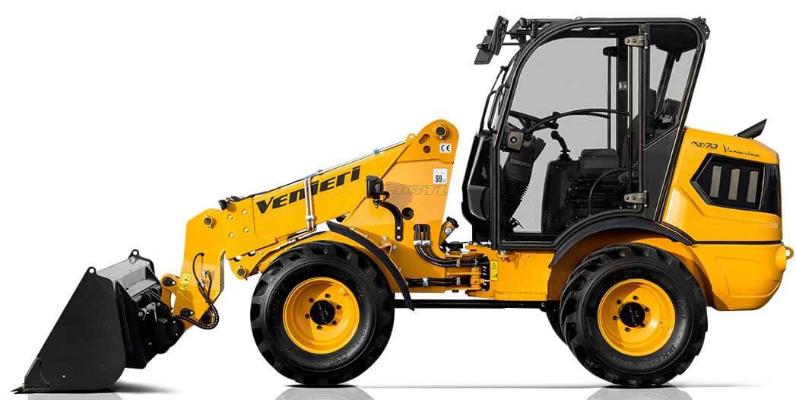

Venieri 1.63TL Telescopic Wheel Loader

The 1.63TL Telescopic Wheel Loader from Venieri is equipped with a telescopic boom and is designed for heavy duty jobs, while giving you safety and reliability in all applications. With the 360° view you can see your whole working area, as well as your front and rear attachments. This small but mighty machine from Venieri lets you tackle even the toughest jobs!

Features

Venieri 1.63TL Telescopic Wheel Loader Features Include:

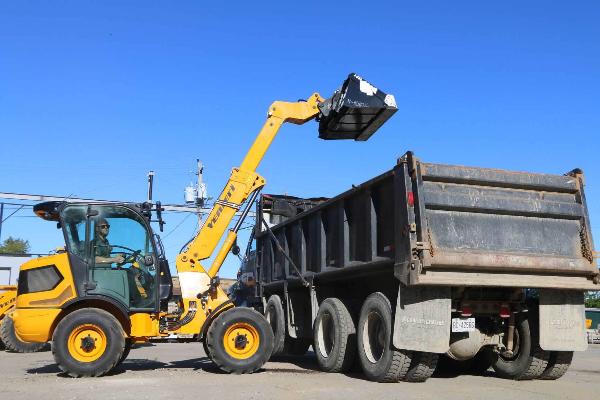

  • HEAVY DUTY TELESCOPIC BOOM - New concept boom and kinematic (VENIERI TELESCOPIC PARALLEL KINEMATIC) designed for heavy duty activities, that ensure safety and reliability in any application, especially heavy ones.
  • 360° VIEW - Full control of the whole working area as well as front and rear attachments, thanks to the 360° visibility of the Venieri Cabin.
  • AUTOMOTIVE DISC BRAKE SYSTEM - Usually used on big loaders only, to ensure a strong breaking performance.
  • 3 CABINS 3 OPTIONS JUST 1 MACHINE - you choose which cabin would work best for you!
  • LED LAMP - Next-gen LED lamps, as used in automotive applications.

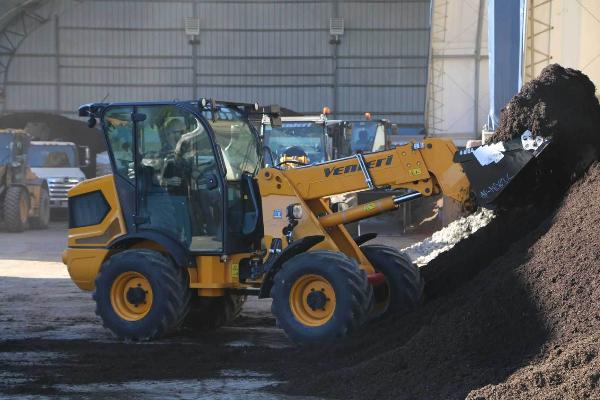

  • PERFECT STABILITY - Rear oscillating axle and central articulation (heavy-duty, oversized, designed for 13,000/15,000 lb machines.
  • DRIVE SPEED - 25 mph driving speed.
  • REAR TOOL ATTACHMENT - The machine can be equipped with multiple hydraulic and electric lines to use rear attachments.
  • 50 HP OF PURE JAPANESE POWER - Yanmar engine, inline four cylinder, aspirated, Tier III, able to deliver high torque at low rpm.

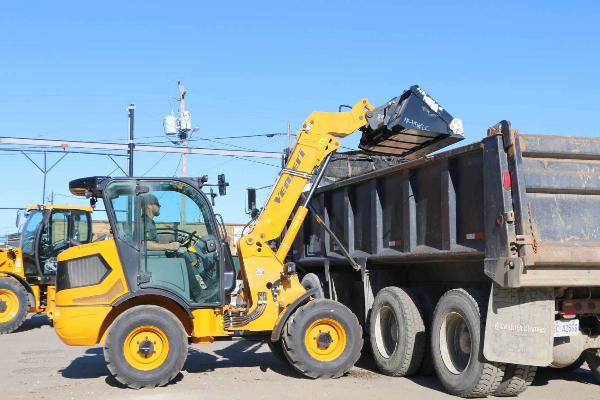

  • TIRE RANGE FOR ANY KIND OF APPLICATION - Wide range of tires selected for any kind of terrain and application: both industrial and agricultural.

Specifications

Venieri 1.63TL Telescopic Wheel Loader Specifications:

  • Max Power - 50 HP
  • Max Torque - 104 ft-lbf
  • Economic Working Range - 1,200 - 1,800 rpm
  • Battery - 12 Volt
  • Alternator - 55A
  • Max Hydraulic Flow - 15.32 gpm
  • Loader Relief Valve Pressure - 2,756 psi
  • Steering Relief Valve Pressure - 3,046 psi
  • Tipping Capacity - 5,071 lbs
  • Hinge Pin Height (telescopic extended) - 12 feet 10 inches
  • Hinge Pin Height (telescopic retracted) - 10 feet
  • Dump Height at 37° (telescopic extended) - 10 feet 5 inches
  • Dump Height at 37° (telescopic retracted) - 7 feet 7 inches
  • Reach at 37° (telescopic extended) - 4 feet 3 inches
  • Reach at 37° (telescopic retracted) - 2 feet 9 inches
  • Breakout Force - 5,952 lbs
  • Total Steering Angle - 90°
  • Max Height - 7 feet 4 inches
  • Wheelbase - 6 feet 4 inches
  • Track Width - 3 feet 10 inches

Contact

Find the Venieri 1.63TL Telescopic Wheel Loader at Kooy Brothers Equipment Ltd. located at 1919 Wilson Avenue in Toronto Ontario.

Contact us for more information.

*Price is subject to change without notice. Errors and omissions exempted.

Downloads

VF 1.63TL Leaflet
VF 1.63TL Leaflet USA Version
Full Range Leaflet
Full Range Leaflet USA Version
